객체 생성 : 추상 팩토리 패턴 ( Abstract Factory Pattern )

GOF의 디자인 패턴 중...

객체 생성의 추상 팩토리에 관한 내용



사용의도

• 구체적인 자식 클래스를 정의하지 않고 관련성을 갖는 객체들의 집합을 생성하거나 서로 독립적인 객체들의 집합을 생성할 수 있는 인터페이스를 제공하는 패턴.



동기

• UI 버튼 모양, 동작 방식이 서로 다르기 떄문에 직접 정의하여 사용하지 않고 인터페이스를 정의한 후, 인터페이스를 상속받은 클래스를 정의하여 구체적인 구현을 제공한다.



활용성

• 객체가 생성되거나 구성, 표현되는 방식과 무관하게 시스템을 독립적으로 만들고자 할 때 - ( 이해가 잘 안됨.. )
• 여러 제품군 중 하나를 선택해서 시스템을 설정해야 하고 한번 구성한 제품을 다른 것으로 대체할 수 있을 때
• 관련 제품 객체들이 함께 사용되도록 설계되었고 이 부분에 대한 제약이 외부에도 지켜지도록 하고 싶을 때
• 제품에 대한 클래스 라이브러리를 제공하고, 구현이 아닌 인터페이스를 노출시키고 싶을 때

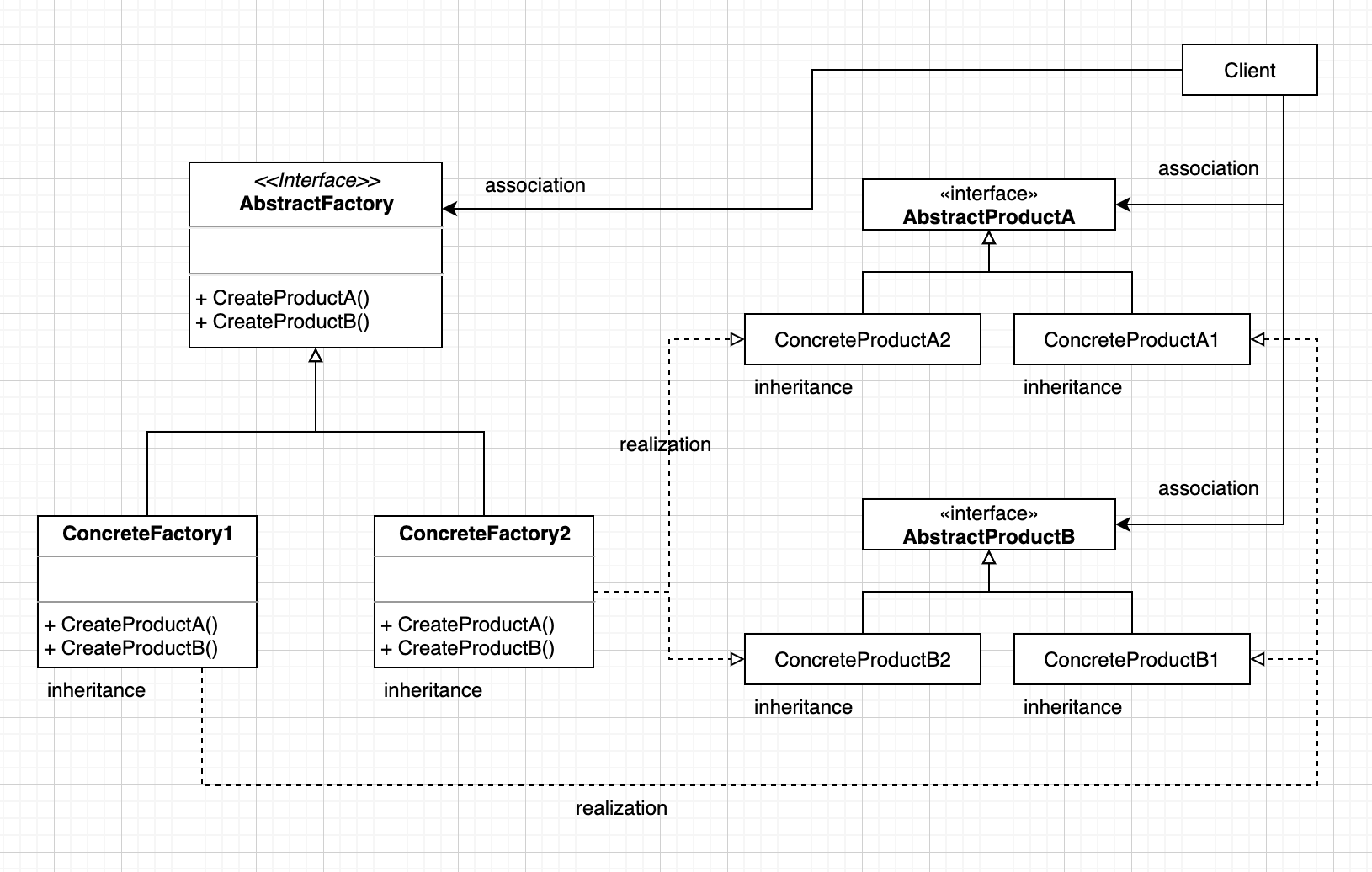

구조

UML 관계

참여자

• AbstractFactory : 개념적 제품에 대한 객체를 생성하는 연산으로 인터페이스를 정의한다. ( 기아 자동차 )
• ConcreteFactory ( 1, 2 ) : 구체적인 제품에 대한 객체를 생성하는 연산으로 구현. ( 기아 자동차의 공장 )
• AbstractProduct ( A, B ) : 개념적 제품 객체에 대한 인터페이스를 정의한다. ( SUV, 승용차 )
• ConcreteProduct ( A1, A2, B1, B2 ) : 구체적으로 팩토리가 생성할 객체를 정의하고, AbstractProduct가 정의하는 인터페이스를 구현한다. ( 쏘렌토, K7 등등 )
• Client : AbstractFactory와 AbstractProduct 클래스에 선언된 인터페이스를 사용한다. ( 운전자 )



결과

1. 구체적인 클래스를 분리
2. 제품군을 쉽게 대체할 수 있음.
3. 제품 사이의 일관성 증대
4. 새로운 종료의 제품을 제공하기 어려움.



구현

1. 팩토리를 단일체로 정의
2. 제품을 생성
3. 확장 가능한 팩토리들을 정의

예시코드

http://refactoring.guru/design-patterns/abstract-factory/cpp/example

Design Patterns: Abstract Factory in C++

/**
 * Each distinct product of a product family should have a base interface. All
 * variants of the product must implement this interface.
 */
class AbstractProductA {
 public:
  virtual ~AbstractProductA(){};
  virtual std::string UsefulFunctionA() const = 0;
};

/**
 * Concrete Products are created by corresponding Concrete Factories.
 */
class ConcreteProductA1 : public AbstractProductA {
 public:
  std::string UsefulFunctionA() const override {
    return "The result of the product A1.";
  }
};

class ConcreteProductA2 : public AbstractProductA {
  std::string UsefulFunctionA() const override {
    return "The result of the product A2.";
  }
};

/**
 * Here's the the base interface of another product. All products can interact
 * with each other, but proper interaction is possible only between products of
 * the same concrete variant.
 */
class AbstractProductB {
  /**
   * Product B is able to do its own thing...
   */
 public:
  virtual ~AbstractProductB(){};
  virtual std::string UsefulFunctionB() const = 0;
  /**
   * ...but it also can collaborate with the ProductA.
   *
   * The Abstract Factory makes sure that all products it creates are of the
   * same variant and thus, compatible.
   */
  virtual std::string AnotherUsefulFunctionB(const AbstractProductA &collaborator) const = 0;
};

/**
 * Concrete Products are created by corresponding Concrete Factories.
 */
class ConcreteProductB1 : public AbstractProductB {
 public:
  std::string UsefulFunctionB() const override {
    return "The result of the product B1.";
  }
  /**
   * The variant, Product B1, is only able to work correctly with the variant,
   * Product A1. Nevertheless, it accepts any instance of AbstractProductA as an
   * argument.
   */
  std::string AnotherUsefulFunctionB(const AbstractProductA &collaborator) const override {
    const std::string result = collaborator.UsefulFunctionA();
    return "The result of the B1 collaborating with ( " + result + " )";
  }
};

class ConcreteProductB2 : public AbstractProductB {
 public:
  std::string UsefulFunctionB() const override {
    return "The result of the product B2.";
  }
  /**
   * The variant, Product B2, is only able to work correctly with the variant,
   * Product A2. Nevertheless, it accepts any instance of AbstractProductA as an
   * argument.
   */
  std::string AnotherUsefulFunctionB(const AbstractProductA &collaborator) const override {
    const std::string result = collaborator.UsefulFunctionA();
    return "The result of the B2 collaborating with ( " + result + " )";
  }
};

/**
 * The Abstract Factory interface declares a set of methods that return
 * different abstract products. These products are called a family and are
 * related by a high-level theme or concept. Products of one family are usually
 * able to collaborate among themselves. A family of products may have several
 * variants, but the products of one variant are incompatible with products of
 * another.
 */
class AbstractFactory {
 public:
  virtual AbstractProductA *CreateProductA() const = 0;
  virtual AbstractProductB *CreateProductB() const = 0;
};

/**
 * Concrete Factories produce a family of products that belong to a single
 * variant. The factory guarantees that resulting products are compatible. Note
 * that signatures of the Concrete Factory's methods return an abstract product,
 * while inside the method a concrete product is instantiated.
 */
class ConcreteFactory1 : public AbstractFactory {
 public:
  AbstractProductA *CreateProductA() const override {
    return new ConcreteProductA1();
  }
  AbstractProductB *CreateProductB() const override {
    return new ConcreteProductB1();
  }
};

/**
 * Each Concrete Factory has a corresponding product variant.
 */
class ConcreteFactory2 : public AbstractFactory {
 public:
  AbstractProductA *CreateProductA() const override {
    return new ConcreteProductA2();
  }
  AbstractProductB *CreateProductB() const override {
    return new ConcreteProductB2();
  }
};

/**
 * The client code works with factories and products only through abstract
 * types: AbstractFactory and AbstractProduct. This lets you pass any factory or
 * product subclass to the client code without breaking it.
 */

void ClientCode(const AbstractFactory &factory) {
  const AbstractProductA *product_a = factory.CreateProductA();
  const AbstractProductB *product_b = factory.CreateProductB();
  std::cout << product_b->UsefulFunctionB() << "\n";
  std::cout << product_b->AnotherUsefulFunctionB(*product_a) << "\n";
  delete product_a;
  delete product_b;
}

int main() {
  std::cout << "Client: Testing client code with the first factory type:\n";
  ConcreteFactory1 *f1 = new ConcreteFactory1();
  ClientCode(*f1);
  delete f1;
  std::cout << std::endl;
  std::cout << "Client: Testing the same client code with the second factory type:\n";
  ConcreteFactory2 *f2 = new ConcreteFactory2();
  ClientCode(*f2);
  delete f2;
  return 0;
}
